#include <NdbQueryOperationImpl.hpp>

Classes
class	OrderedFragSet

Public Member Functions
Uint32	getNoOfOperations () const
Uint32	getNoOfLeafOperations () const
NdbQueryOperationImpl &	getQueryOperation (Uint32 ident) const
NdbQueryOperationImpl *	getQueryOperation (const char *ident) const
Uint32	getNoOfParameters () const
const NdbParamOperand *	getParameter (const char *name) const
const NdbParamOperand *	getParameter (Uint32 num) const
NdbQuery::NextResultOutcome	nextResult (bool fetchAllowed, bool forceSend)
int	close (bool forceSend)
void	release ()
NdbTransaction &	getNdbTransaction () const
const NdbError &	getNdbError () const
void	setErrorCode (int aErrorCode)
int	assignParameters (const NdbQueryParamValue paramValues[])
int	setBound (const NdbRecord keyRecord, const NdbIndexScanOperation::IndexBound bound)
int	prepareSend ()
int	doSend (int aNodeId, bool lastFlag)
NdbQuery &	getInterface ()
NdbQueryImpl *	getNext () const
void	setNext (NdbQueryImpl *next)
const NdbQueryDefImpl &	getQueryDef () const
bool	execTCKEYCONF ()
void	execCLOSE_SCAN_REP (int errorCode, bool needClose)
bool	hasCompleted () const
void	setStartIndicator ()
void	setCommitIndicator ()
int	isPrunable (bool &pruned)
Uint32	getRootFragCount () const
NdbBulkAllocator &	getResultStreamAlloc ()
NdbBulkAllocator &	getTupleSetAlloc ()
NdbBulkAllocator &	getRowBufferAlloc ()

Static Public Member Functions
static NdbQueryImpl *	buildQuery (NdbTransaction &trans, const NdbQueryDefImpl &queryDef)

Friends
class	NdbQueryOperationImpl
NdbOut &	operator<< (NdbOut &out, const class NdbQueryOperationImpl &)

Detailed Description

This class is the internal implementation of the interface defined by NdbQuery. This class should thus not be visible to the application programmer.

See Also: NdbQuery.

Definition at line 92 of file NdbQueryOperationImpl.hpp.

Member Function Documentation

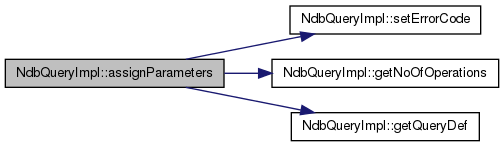

int NdbQueryImpl::assignParameters ( const NdbQueryParamValue paramValues[] )

Assign supplied parameter values to the parameter placeholders created when the query was defined. Values are copied into this NdbQueryImpl object: Memory location used as source for parameter values don't have to be valid after this assignment.

Assign supplied parameter values to the parameter placeholders Created when the query was defined. Values are copied into this NdbQueryImpl object: Memory location used as source for parameter values don't have to be valid after this assignment.

Immediately build the serialized parameter representation in order to avoid storing param values elsewhere until query is executed. Also calculates prunable property, and possibly its hashValue.

Definition at line 1889 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

NdbQueryImpl * NdbQueryImpl::buildQuery	(	NdbTransaction &	trans,
		const NdbQueryDefImpl &	queryDef
	)

static

Factory method which instantiate a query from its definition. (There is no public constructor.)

Definition at line 1858 of file NdbQueryOperation.cpp.

Here is the caller graph for this function:

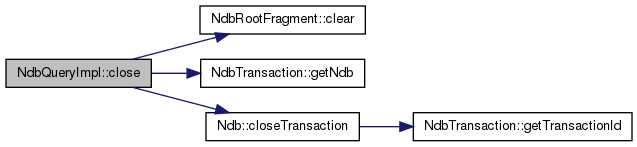

int NdbQueryImpl::close ( bool forceSend )

Close query:

Release datanode resources,
Discard pending result sets,
Delete internal buffer and structures for receiving results.
Disconnect with NdbQueryDef - it might now be destructed .

BEWARE: Don't refer NdbQueryDef or its NdbQueryOperationDefs after ::close() as the application is allowed to destruct the Def's after this point.

Definition at line 2461 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

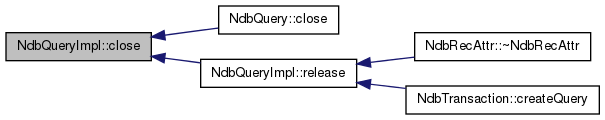

Here is the caller graph for this function:

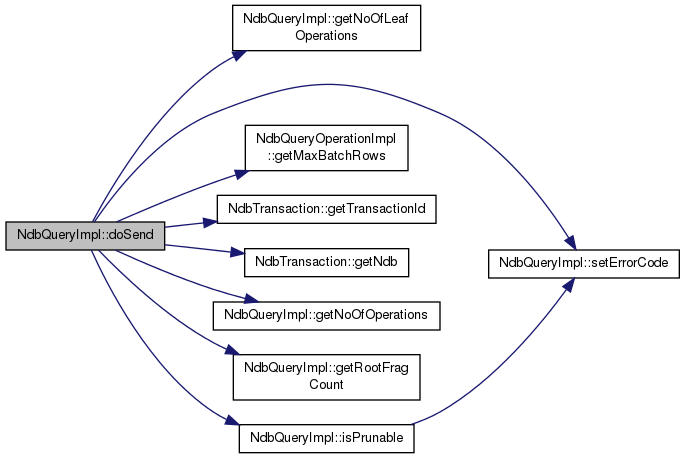

int NdbQueryImpl::doSend	(	int	aNodeId,
		bool	lastFlag
	)

Send prepared signals from this NdbQuery to start execution

Returns: #signals sent, -1 if error.

Then send the signal:

SCANTABREQ always has 2 mandatory sections and an optional third section Section 0 : List of receiver Ids NDBAPI has allocated for the scan Section 1 : ATTRINFO section Section 2 : Optional KEYINFO section

Definition at line 2961 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

void NdbQueryImpl::execCLOSE_SCAN_REP	(	int	errorCode,
		bool	needClose
	)

Process SCAN_TABCONF w/ EndOfData which is a 'Close Scan Reply'.

Definition at line 2624 of file NdbQueryOperation.cpp.

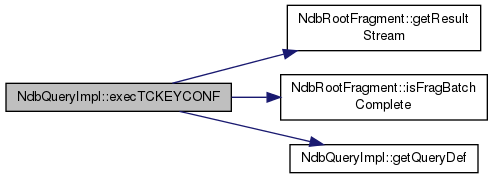

bool NdbQueryImpl::execTCKEYCONF ( )

Process TCKEYCONF message. Return true if query is complete.

Definition at line 2596 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

NdbQueryImpl* NdbQueryImpl::getNext ( ) const

inline

Get next query in same transaction.

Definition at line 187 of file NdbQueryOperationImpl.hpp.

Here is the caller graph for this function:

Uint32 NdbQueryImpl::getNoOfLeafOperations ( ) const

return number of leaf-operations

Definition at line 2107 of file NdbQueryOperation.cpp.

Here is the caller graph for this function:

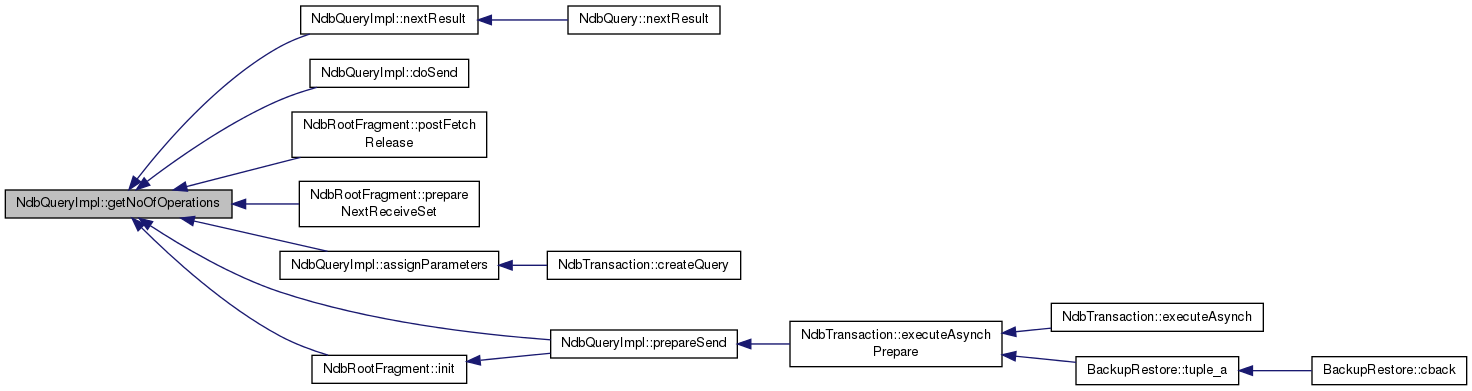

Uint32 NdbQueryImpl::getNoOfOperations ( ) const

Return number of operations in query.

Definition at line 2101 of file NdbQueryOperation.cpp.

Here is the caller graph for this function:

Uint32 NdbQueryImpl::getNoOfParameters ( ) const

Return number of parameter operands in query.

Definition at line 2131 of file NdbQueryOperation.cpp.

const NdbQueryDefImpl& NdbQueryImpl::getQueryDef ( ) const

inline

Get the (transaction independent) definition of this query.

Definition at line 194 of file NdbQueryOperationImpl.hpp.

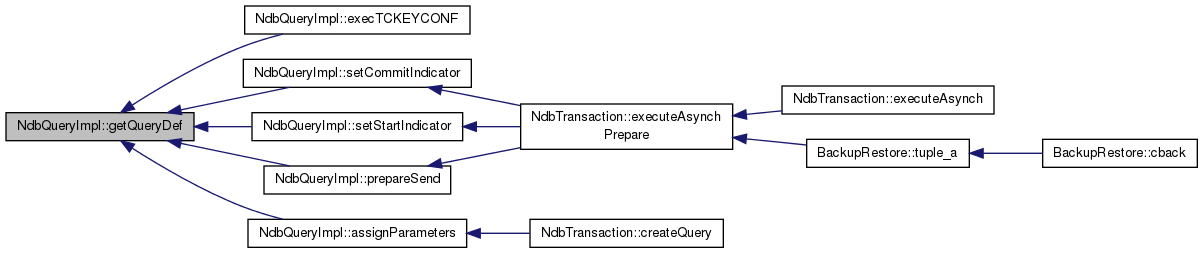

Here is the caller graph for this function:

Uint32 NdbQueryImpl::getRootFragCount ( ) const

inline

Get the number of fragments to be read for the root operation.

Definition at line 247 of file NdbQueryOperationImpl.hpp.

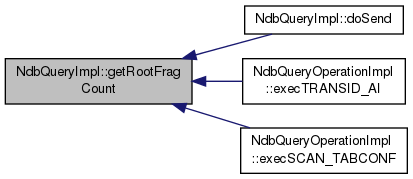

Here is the caller graph for this function:

bool NdbQueryImpl::hasCompleted ( ) const

inline

Determines if query has completed and may be garbage collected A query is not considder complete until the client has called the ::close() or ::release() method on it.

Definition at line 210 of file NdbQueryOperationImpl.hpp.

int NdbQueryImpl::isPrunable ( bool & pruned )

Check if this is a pruned range scan. A range scan is pruned if the ranges are such that only a subset of the fragments need to be scanned for matching tuples.

Parameters

pruned This will be set to true if the operation is a pruned range scan.

Returns: 0 if ok, -1 in case of error (call getNdbError() for details.)

Definition at line 3396 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

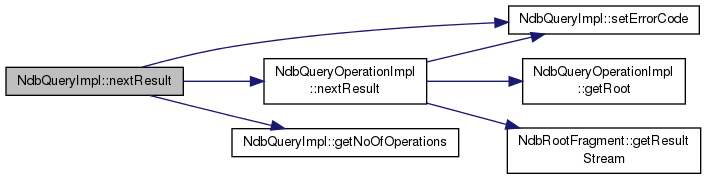

NdbQuery::NextResultOutcome NdbQueryImpl::nextResult	(	bool	fetchAllowed,
		bool	forceSend
	)

Get the next tuple(s) from the global cursor on the query.

Parameters

fetchAllowed	If true, the method may block while waiting for more results to arrive. Otherwise, the method will return immediately if no more results are buffered in the API.
forceSend	FIXME: Describe this.

Returns

NextResult_error (-1): if unsuccessful,
NextResult_gotRow (0): if another tuple was received, and
NextResult_scanComplete (1): if there are no more tuples to scan.
NextResult_bufferEmpty (2): if there are no more cached records in NdbApi

See Also: NdbQueryOperation::nextResult()

NdbQueryImpl::nextResult() - The 'global' cursor on the query results

Will itterate and fetch results for all combinations of results from the NdbOperations which this query consists of. Except for the root operations which will follow any optinal ScanOrdering, we have no control of the ordering which the results from the QueryOperations appear in.

Definition at line 2158 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int NdbQueryImpl::prepareSend ( )

Prepare for execution.

Returns: possible error code.

Scan operations need a own sub-transaction object associated with each query.

Calculate total amount of row buffer space for all operations and fragments.

Allocate and initialize fragment state variables. Will also cause a ResultStream object containing a NdbReceiver to be constructed for each operation in QueryTree

Definition at line 2634 of file NdbQueryOperation.cpp.

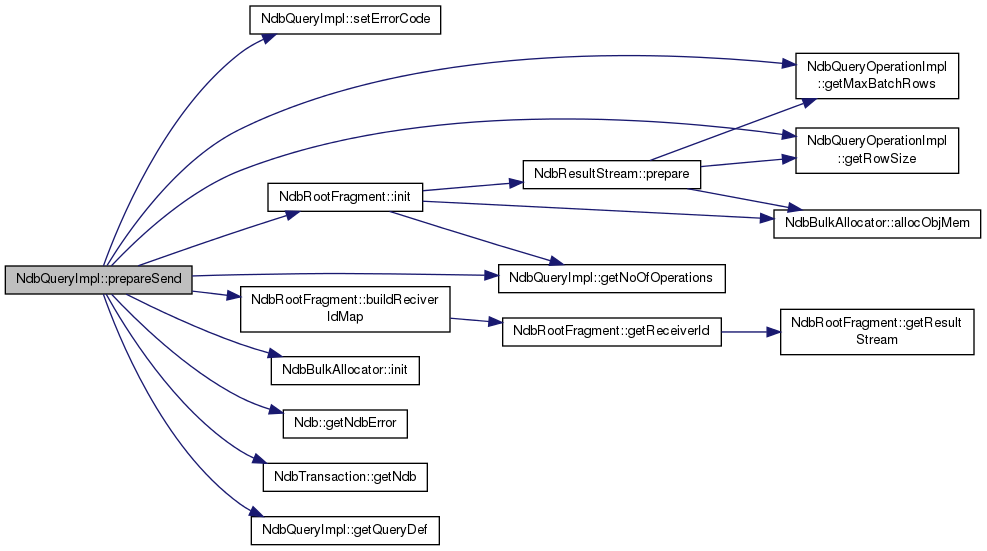

Here is the call graph for this function:

Here is the caller graph for this function:

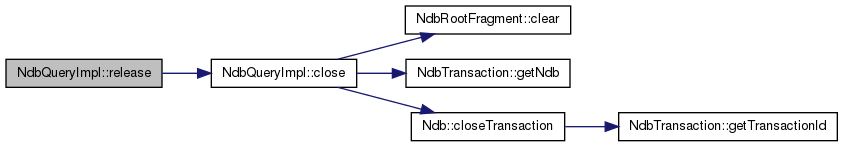

void NdbQueryImpl::release ( )

Deallocate 'this' NdbQuery object and its NdbQueryOperation objects. If not already closed, it will also ::close() the NdbQuery.

Definition at line 2506 of file NdbQueryOperation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void NdbQueryImpl::setCommitIndicator ( )

inline

Mark this query as the last query or operation in a transaction, after which the transaction should be committed. This should only be called for queries where root operation is a lookup.

Definition at line 229 of file NdbQueryOperationImpl.hpp.

Here is the call graph for this function:
