Handshake Class Reference

Common base for Handshake_{server,client}. More...

#include <handshake.h>

Inheritance diagram for Handshake:

Collaboration diagram for Handshake:

Public Types
enum	side_t { CLIENT, SERVER }

Public Member Functions
	Handshake (const char *ssp, side_t side)
int	packet_processing_loop ()
virtual bool	is_complete () const
int	error () const
const char *	ssp_name ()

Protected Member Functions
bool	process_result (int)
virtual Blob	process_data (const Blob &data)=0
virtual Blob	read_packet ()=0
	Read packet from the other end.
virtual int	write_packet (Blob &data)=0
	Write packet to the other end.

Protected Attributes
CtxtHandle	m_sctx
	Security context object created during the handshake.
CredHandle	m_cred
	Credentials of the principal performing this handshake.
TimeStamp	m_expire
	Stores expiry date of the created security context.
ULONG	m_atts
	Stores attributes of the created security context.
unsigned int	m_round
int	m_error
	If non-zero, stores error code of the last failed operation.
bool	m_complete
	true when handshake is complete.
bool	m_have_credentials
	true when the principal credentials has been determined.
bool	m_have_sec_context
	true when the security context has been created.
Security_buffer	m_output
	Buffer for data to be send to the other side.

Detailed Description

Common base for Handshake_{server,client}.

Definition at line 94 of file handshake.h.

Constructor & Destructor Documentation

Handshake::Handshake	(	const char *	ssp,
		side_t	side
	)

Handshake class implementation Create common part of handshake context.

Parameters

[in]	ssp	name of the SSP (Security Service Provider) to be used for authentication
[in]	side	is this handshake object used for server- or client-side handshake

Prepare for handshake using the ssp security module. We use "Negotiate" which picks best available module. Parameter side tells if this is preparing for server or client side authentication and is used to prepare appropriate credentials.

Definition at line 35 of file handshake.cc.

Member Function Documentation

int Handshake::packet_processing_loop

(

)

Read and process data packets from the other end of a connection.

Parameters

IN]	con a connection to read packets from

Packets are read and processed until authentication handshake is complete. It is assumed that the peer will send at least one packet. Packets are processed with process_data() method. If new data is generated during packet processing, this data is sent to the peer and another round of packet exchange starts.

Returns

0 on success.

Note

In case of error, appropriate error message is logged.

Definition at line 93 of file handshake.cc.

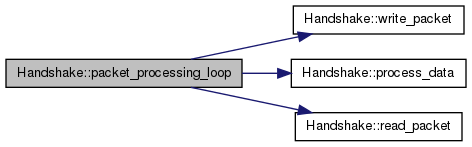

Here is the call graph for this function:

virtual Blob Handshake::process_data ( const Blob &  data )

protectedpure virtual

This method is used inside packet_processing_loop to process data packets received from the other end.

Parameters

IN]	data data to be processed

Returns

A blob with data to be sent to the other end or null blob if no more data needs to be exchanged.

Implemented in Handshake_client.

Here is the caller graph for this function:

bool Handshake::process_result ( int  ret )

protected

Process result of {Initialize,Accept}SecurityContext() function.

Parameters

[in]

ret

return code from {Initialize,Accept}SecurityContext() function

This function analyses return value of Windows {Initialize,Accept}SecurityContext() function. A call to CompleteAuthToken() is done if requested. If authentication is complete, this fact is marked in the internal state of the Handshake object. If errors are detected the object is moved to error state.

Returns

True if error has been detected.

Definition at line 216 of file handshake.cc.

Here is the caller graph for this function:

const char * Handshake::ssp_name

(

)

Get name of the security package which was used in authentication.

This method should be called only after handshake was completed. It is available only in debug builds.

Returns

Name of security package or NULL if it can not be obtained.

Definition at line 177 of file handshake.cc.

Member Data Documentation

unsigned int Handshake::m_round

protected

Round of the handshake (starting from round 1). One round consist of reading packet from the other side, processing it and optionally sending a reply (see packet_processing_loop()).

Definition at line 134 of file handshake.h.

---

The documentation for this class was generated from the following files:

• libmysql/authentication_win/handshake.h
• libmysql/authentication_win/handshake.cc
