#include <rpl_gtid.h>

Collaboration diagram for Gtid_set:

Classes
class	Const_interval_iterator
class	Free_intervals_lock
class	Gtid_iterator
struct	Interval
struct	Interval_chunk
class	Interval_iterator
class	Interval_iterator_base
struct	String_format

Public Member Functions
	Gtid_set (Sid_map sid_map, Checkable_rwlock sid_lock=NULL)
	Gtid_set (Sid_map sid_map, const char text, enum_return_status status, Checkable_rwlock sid_lock=NULL)
	~Gtid_set ()
	Destroy this Gtid_set.
void	clear ()
enum_return_status	_add_gtid (rpl_sidno sidno, rpl_gno gno)
enum_return_status	_remove_gtid (rpl_sidno sidno, rpl_gno gno)
enum_return_status	_add_gtid (const Gtid &gtid)
enum_return_status	add_gtid_set (const Gtid_set *other)
enum_return_status	remove_gtid_set (const Gtid_set *other)
enum_return_status	add_gtid_text (const char text, bool anonymous=NULL)
enum_return_status	add_gtid_encoding (const uchar encoded, size_t length, size_t actual_length=NULL)
bool	contains_gtid (rpl_sidno sidno, rpl_gno gno) const
	Return true iff the given GTID exists in this set.
bool	contains_gtid (const Gtid &gtid) const
	Return true iff the given GTID exists in this set.
rpl_sidno	get_max_sidno () const
	Returns the maximal sidno that this Gtid_set currently has space for.
enum_return_status	ensure_sidno (rpl_sidno sidno)
bool	is_subset (const Gtid_set *super) const
	Returns true if this Gtid_set is a subset of the other Gtid_set.
bool	is_intersection_nonempty (const Gtid_set *other) const
enum_return_status	intersection (const Gtid_set other, Gtid_set result)
bool	is_empty () const
	Returns true if this Gtid_set is empty.
bool	contains_sidno (rpl_sidno sidno) const
char *	to_string () const
void	print () const
	Debug only: Print this Gtid_set to stdout.
void	dbug_print (const char *text="") const
int	get_string_length (const String_format *string_format=NULL) const
int	to_string (char buf, const String_format string_format=NULL) const
int	to_string (char *buf, const String_format string_format=NULL) const
Sid_map *	get_sid_map () const
	Return the Sid_map associated with this Gtid_set.
void	add_interval_memory (int n_intervals, Interval *intervals_param)
void	encode (uchar *buf) const
size_t	get_encoded_length () const

Static Public Member Functions
static bool	is_valid (const char *text)

Static Public Attributes
static const String_format	default_string_format
static const String_format	sql_string_format
static const String_format	commented_string_format

Friends
class	Gtid_set::Free_intervals_lock
	Used by unit tests that need to access private members.

Detailed Description

Represents a set of GTIDs.

This is structured as an array, indexed by SIDNO, where each element contains a linked list of intervals.

This data structure OPTIONALLY knows of a Sid_map that gives a correspondence between SIDNO and SID. If the Sid_map is NULL, then operations that require a Sid_map - printing and parsing - raise an assertion.

This data structure OPTIONALLY knows of a read-write lock that protects the number of SIDNOs. The lock is provided by the invoker of the constructor and it is generally the caller's responsibility to acquire the read lock. If the lock is not NULL, access methods assert that the caller already holds the read (or write) lock. If the lock is not NULL and a method of this class grows the number of SIDNOs, then the method temporarily upgrades this lock to a write lock and then degrades it to a read lock again; there will be a short period when the lock is not held at all.

Definition at line 842 of file rpl_gtid.h.

Constructor & Destructor Documentation

Gtid_set::Gtid_set	(	Sid_map *	sid_map,
		Checkable_rwlock *	sid_lock = `NULL`
	)

Constructs a new, empty Gtid_set.

Parameters

sid_map	The Sid_map to use, or NULL if this Gtid_set should not have a Sid_map.
sid_lock	Read-write lock that protects updates to the number of SIDs. This may be NULL if such changes do not need to be protected.

Definition at line 50 of file rpl_gtid_set.cc.

Gtid_set::Gtid_set	(	Sid_map *	sid_map,
		const char *	text,
		enum_return_status *	status,
		Checkable_rwlock *	sid_lock = `NULL`
	)

Constructs a new Gtid_set that contains the groups in the given string, in the same format as add_gtid_text(char *).

Parameters

sid_map	The Sid_map to use for SIDs.
text	The text to parse.
status	Will be set GS_SUCCESS or GS_ERROR_PARSE or GS_ERROR_OUT_OF_MEMORY.
sid_lock	Read/write lock to protect changes in the number of SIDs with. This may be NULL if such changes do not need to be protected.

If sid_lock != NULL, then the read lock on sid_lock must be held before calling this function. If the array is grown, sid_lock is temporarily upgraded to a write lock and then degraded again; there will be a short period when the lock is not held at all.

Definition at line 57 of file rpl_gtid_set.cc.

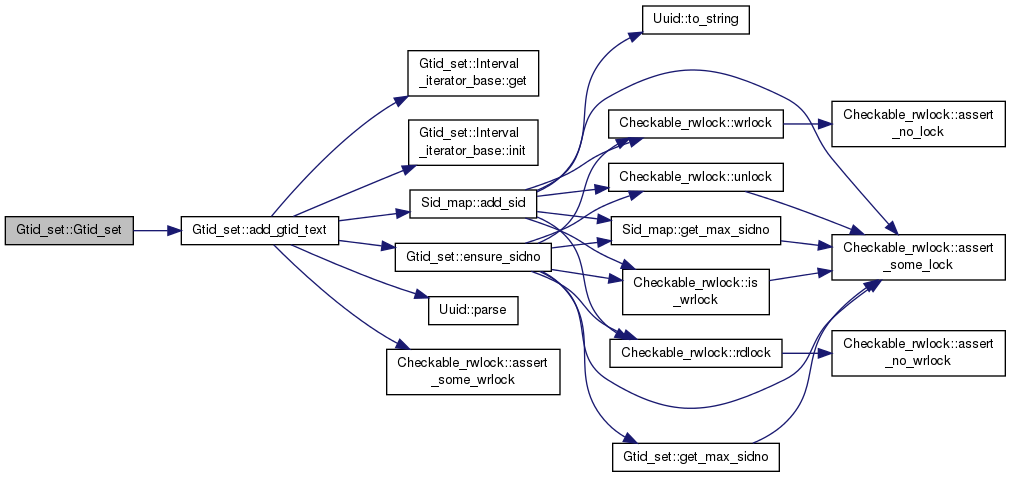

Here is the call graph for this function:

Member Function Documentation

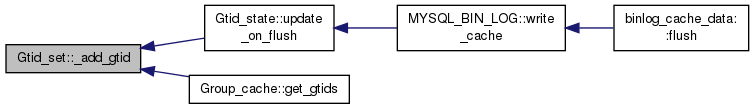

enum_return_status Gtid_set::_add_gtid	(	rpl_sidno	sidno,
		rpl_gno	gno
	)

inline

Adds the given GTID to this Gtid_set.

The SIDNO must exist in the Gtid_set before this function is called.

Parameters

sidno	SIDNO of the group to add.
gno	GNO of the group to add.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 895 of file rpl_gtid.h.

Here is the caller graph for this function:

enum_return_status Gtid_set::_add_gtid ( const Gtid & gtid )

inline

Adds the given GTID to this Gtid_set.

The SIDNO must exist in the Gtid_set before this function is called.

Parameters

gtid	Gtid to add.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 930 of file rpl_gtid.h.

Here is the call graph for this function:

Here is the caller graph for this function:

enum_return_status Gtid_set::_remove_gtid	(	rpl_sidno	sidno,
		rpl_gno	gno
	)

inline

Removes the given GTID from this Gtid_set.

Parameters

sidno	SIDNO of the group to remove.
gno	GNO of the group to remove.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 910 of file rpl_gtid.h.

Here is the call graph for this function:

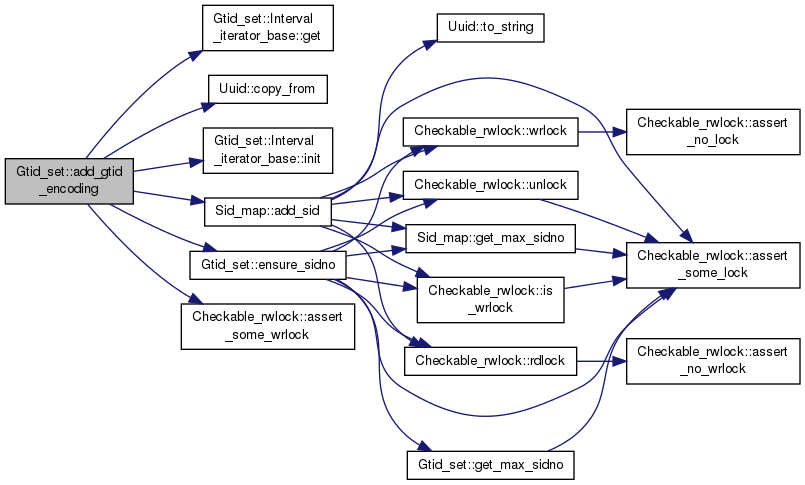

enum_return_status Gtid_set::add_gtid_encoding	(	const uchar *	encoded,
		size_t	length,
		size_t *	actual_length = `NULL`
	)

Decodes a Gtid_set from the given string.

Parameters

string	The string to parse.
length	The number of bytes.
actual_length	If this is not NULL, it is set to the number of bytes used by the encoding (which may be less than 'length'). If this is NULL, an error is generated if the encoding is shorter than the given 'length'.

Returns: GS_SUCCESS or GS_ERROR_PARSE or GS_ERROR_OUT_OF_MEMORY

Definition at line 1315 of file rpl_gtid_set.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

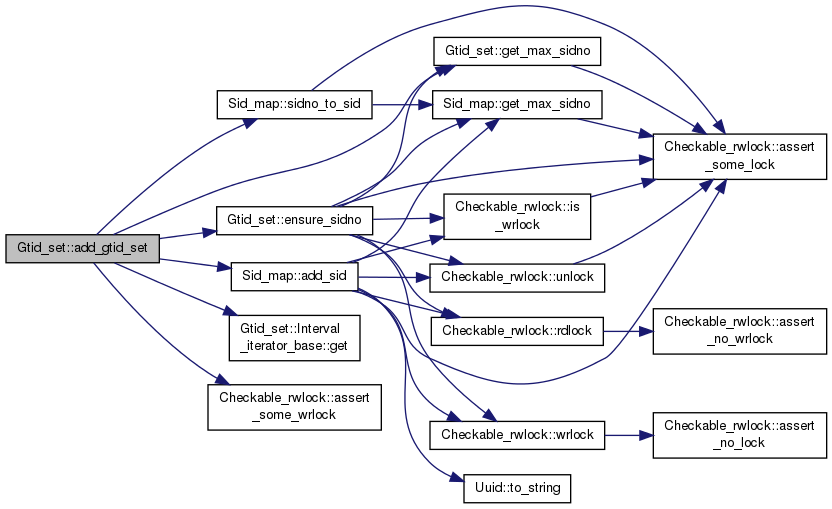

enum_return_status Gtid_set::add_gtid_set ( const Gtid_set * other )

Adds all groups from the given Gtid_set to this Gtid_set.

If sid_lock != NULL, then the read lock must be held before calling this function. If a new sidno is added so that the array of lists of intervals is grown, sid_lock is temporarily upgraded to a write lock and then degraded again; there will be a short period when the lock is not held at all.

Parameters

other The Gtid_set to add.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 648 of file rpl_gtid_set.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

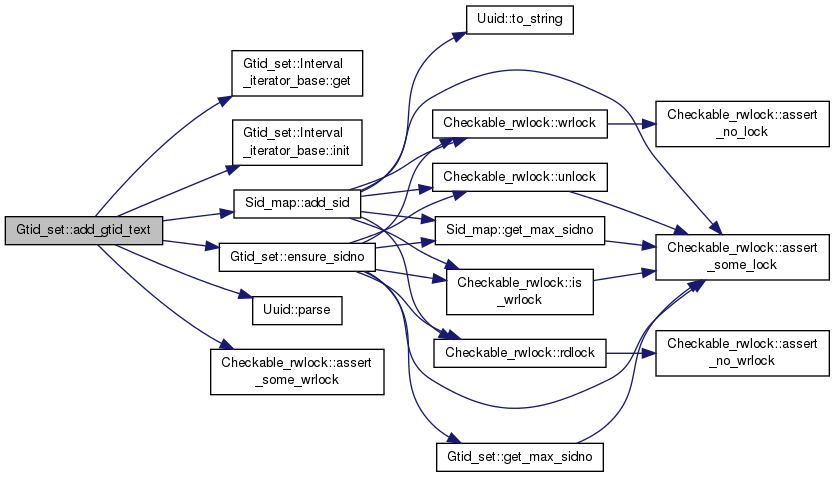

enum_return_status Gtid_set::add_gtid_text	(	const char *	text,
		bool *	anonymous = `NULL`
	)

Adds the set of GTIDs represented by the given string to this Gtid_set.

The string must have the format of a comma-separated list of zero or more of the following:

XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX(:NUMBER+(-NUMBER)?)* | ANONYMOUS

Each X is a hexadecimal digit (upper- or lowercase). NUMBER is a decimal, 0xhex, or 0oct number.

The start of an interval must be greater than 0. The end of an interval may be 0, but any interval that has an endpoint that is smaller than the start is discarded.

If sid_lock != NULL, then the read lock on sid_lock must be held before calling this function. If a new sidno is added so that the array of lists of intervals is grown, sid_lock is temporarily upgraded to a write lock and then degraded again; there will be a short period when the lock is not held at all.

Parameters

text	The string to parse.
anonymous[in,out]	If this is NULL, ANONYMOUS is not allowed. If this is not NULL, it will be set to true if the anonymous group was found; false otherwise.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 408 of file rpl_gtid_set.cc.

Here is the call graph for this function:

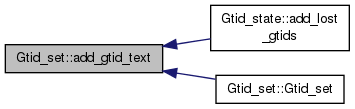

Here is the caller graph for this function:

void Gtid_set::add_interval_memory	(	int	n_intervals,
		Interval *	intervals_param
	)

inline

Provides an array of Intervals that this Gtid_set can use when groups are subsequently added. This can be used as an optimization, to reduce allocation for sets that have a known number of intervals.

Parameters

n_intervals	The number of intervals to add.
intervals	Array of n_intervals intervals.

Definition at line 1202 of file rpl_gtid.h.

void Gtid_set::clear ( )

Removes all groups from this Gtid_set.

This does not deallocate anything: if groups are added later, existing allocated memory will be re-used.

Definition at line 229 of file rpl_gtid_set.cc.

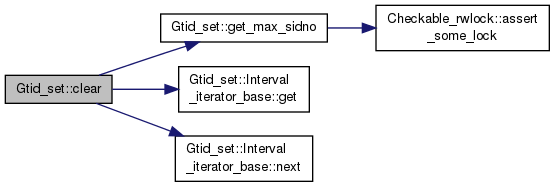

Here is the call graph for this function:

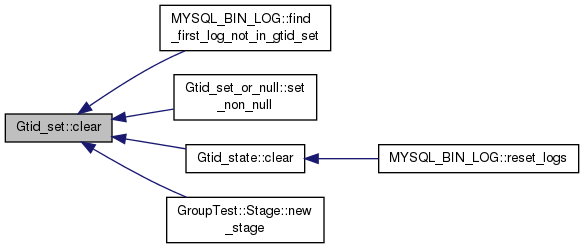

Here is the caller graph for this function:

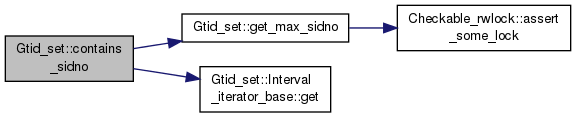

bool Gtid_set::contains_sidno ( rpl_sidno sidno ) const

inline

Returns true if this Gtid_set contains at least one GTID with the given SIDNO.

Parameters

sidno The SIDNO to test.

Return values

true	The SIDNO is less than or equal to the max SIDNO, and there is at least one group with this SIDNO.
false	The SIDNO is greater than the max SIDNO, or there is no group with this SIDNO.

Definition at line 1048 of file rpl_gtid.h.

Here is the call graph for this function:

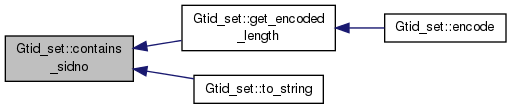

Here is the caller graph for this function:

void Gtid_set::dbug_print ( const char * text = "" ) const

inline

Print this Gtid_set to the trace file if debug is enabled; no-op otherwise.

Definition at line 1085 of file rpl_gtid.h.

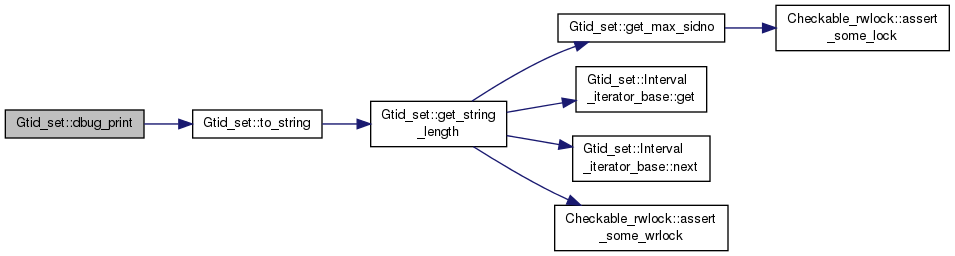

Here is the call graph for this function:

Here is the caller graph for this function:

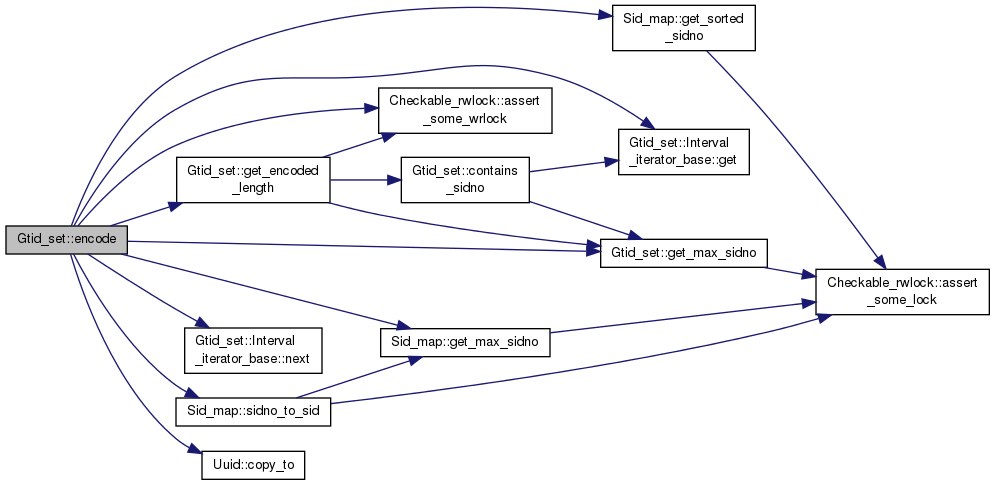

void Gtid_set::encode ( uchar * buf ) const

Encodes this Gtid_set as a binary string.

Definition at line 1259 of file rpl_gtid_set.cc.

Here is the call graph for this function:

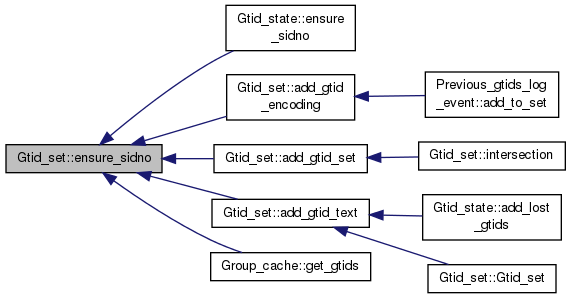

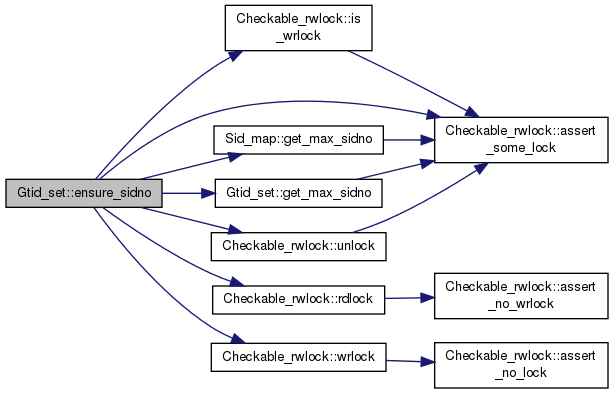

enum_return_status Gtid_set::ensure_sidno ( rpl_sidno sidno )

Allocates space for all sidnos up to the given sidno in the array of intervals. The sidno must exist in the Sid_map associated with this Gtid_set.

If sid_lock != NULL, then the read lock on sid_lock must be held before calling this function. If the array is grown, sid_lock is temporarily upgraded to a write lock and then degraded again; there will be a short period when the lock is not held at all.

Parameters

sidno The SIDNO.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 105 of file rpl_gtid_set.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

size_t Gtid_set::get_encoded_length ( ) const

Returns the length of this Gtid_set when encoded using the encode() function.

Definition at line 1411 of file rpl_gtid_set.cc.

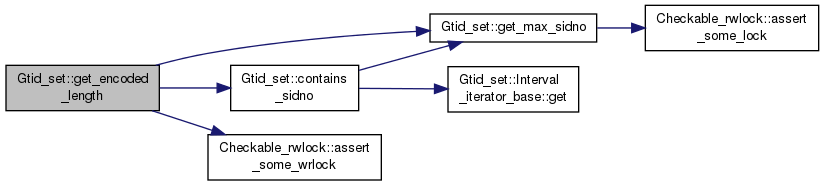

Here is the call graph for this function:

Here is the caller graph for this function:

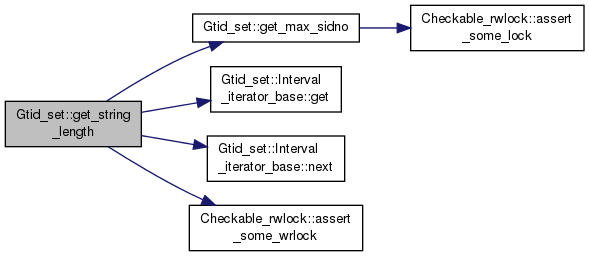

int Gtid_set::get_string_length ( const String_format * string_format = NULL ) const

Returns the length of the output from to_string.

Warning: This does not include the trailing '\0', so your buffer needs space for get_string_length() + 1 characters.

Parameters

string_format String_format object that specifies separators in the resulting text.

Returns: The length.

Definition at line 874 of file rpl_gtid_set.cc.

Here is the call graph for this function:

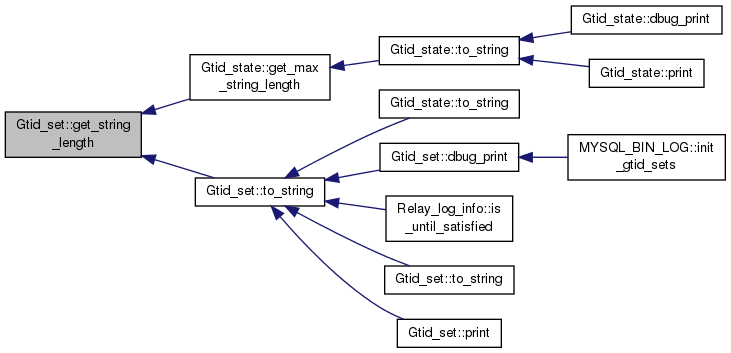

Here is the caller graph for this function:

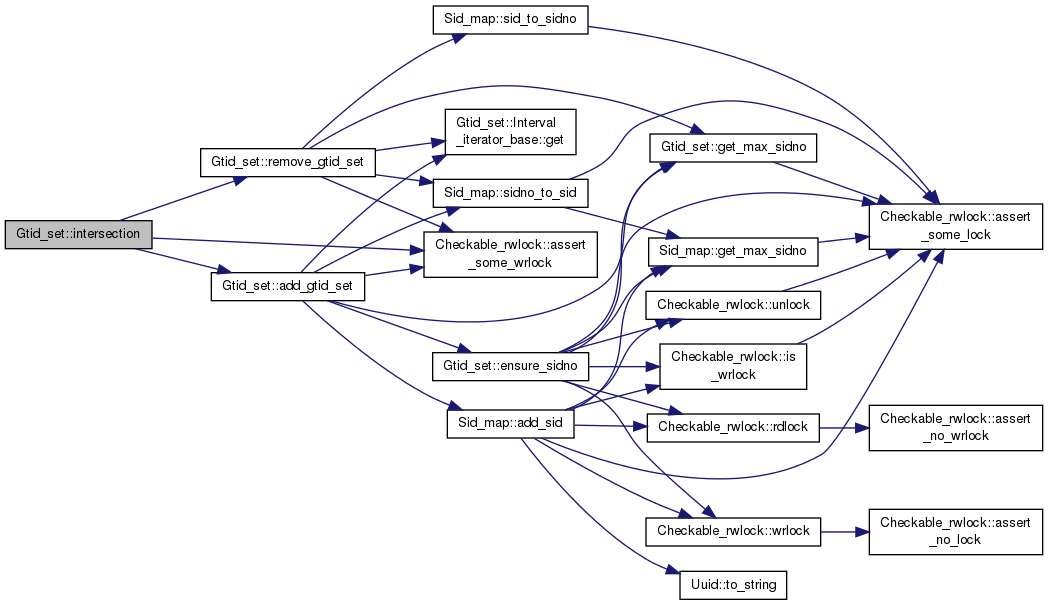

enum_return_status Gtid_set::intersection	(	const Gtid_set *	other,
		Gtid_set *	result
	)

Add the intersection of this Gtid_set and the other Gtid_set to result.

Parameters

other	The Gtid_set to intersect with this Gtid_set
result	Gtid_set where the result will be stored.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Todo:: : This algorithm is simple, a little bit slower than necessary. It would be more efficient to iterate over intervals of 'this' and 'other' similar to add_gno_interval(). At the moment the performance of this is not super-important. /Sven

Definition at line 1231 of file rpl_gtid_set.cc.

Here is the call graph for this function:

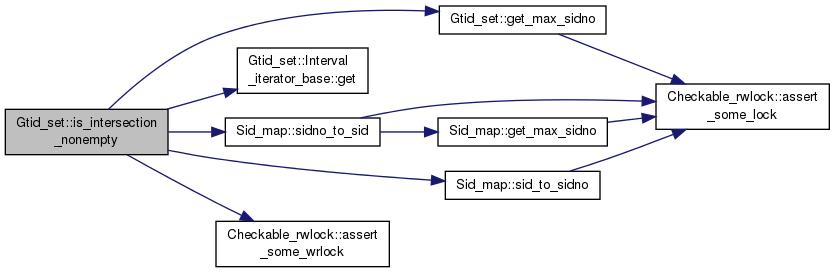

bool Gtid_set::is_intersection_nonempty ( const Gtid_set * other ) const

Returns true if there is a least one element of this Gtid_set in the other Gtid_set.

Definition at line 1167 of file rpl_gtid_set.cc.

Here is the call graph for this function:

bool Gtid_set::is_valid ( const char * text )

static

Returns true if the given string is a valid specification of a Gtid_set, false otherwise.

Definition at line 556 of file rpl_gtid_set.cc.

Here is the call graph for this function:

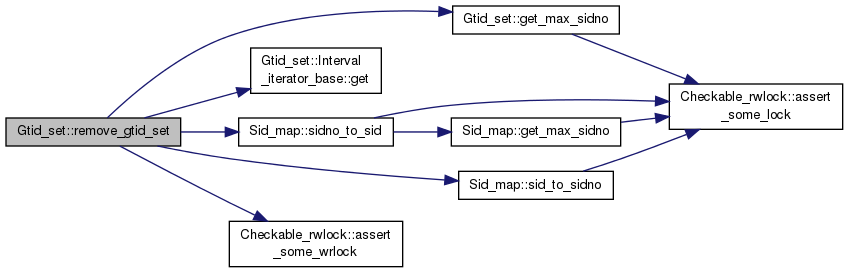

enum_return_status Gtid_set::remove_gtid_set ( const Gtid_set * other )

Removes all groups in the given Gtid_set from this Gtid_set.

Parameters

other The Gtid_set to remove.

Returns: RETURN_STATUS_OK or RETURN_STATUS_REPORTED_ERROR.

Definition at line 692 of file rpl_gtid_set.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

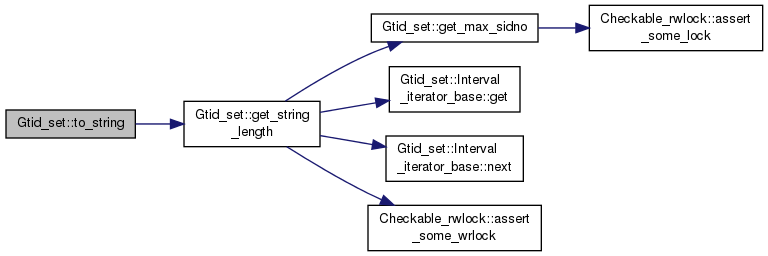

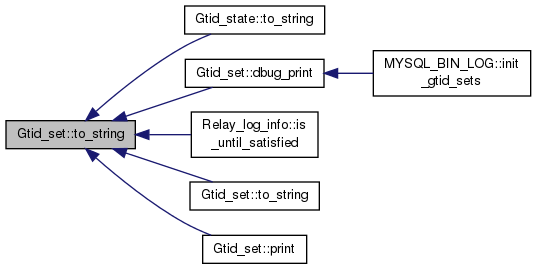

char* Gtid_set::to_string ( ) const

inline

Return a newly allocated string containing this Gtid_set, or NULL on out of memory.

Definition at line 1065 of file rpl_gtid.h.

Here is the call graph for this function:

Here is the caller graph for this function:

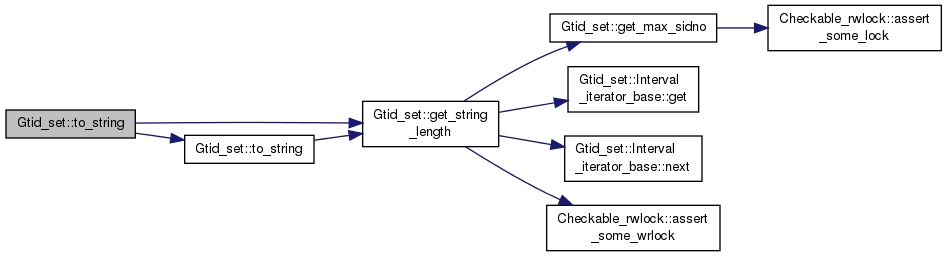

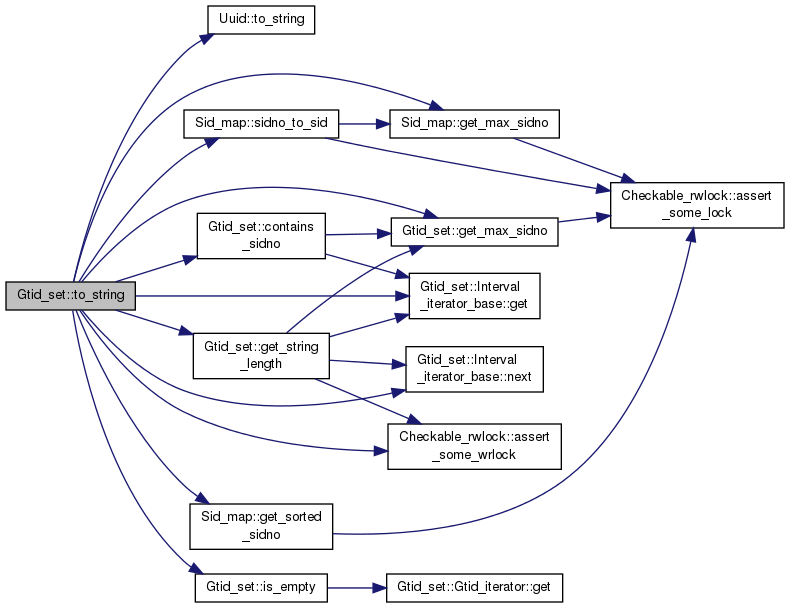

int Gtid_set::to_string	(	char *	buf,
		const String_format *	string_format = `NULL`
	)		const

Formats this Gtid_set as a string and saves in a given buffer.

Parameters

[out]	buf	Pointer to the buffer where the string should be stored. This should have size at least get_string_length()+1.
	string_format	String_format object that specifies separators in the resulting text.

Returns: Length of the generated string.

Definition at line 769 of file rpl_gtid_set.cc.

Here is the call graph for this function:

int Gtid_set::to_string	(	char **	buf,
		const String_format *	string_format = `NULL`
	)		const

Formats a Gtid_set as a string and saves in a newly allocated buffer.

Parameters

[out]	buf	Pointer to pointer to string. The function will set it to point to the newly allocated buffer, or NULL on out of memory.
	string_format	Specifies how to format the string.

Return values

Length of the generated string, or -1 on out of memory.

Definition at line 758 of file rpl_gtid_set.cc.

Here is the call graph for this function:

Friends And Related Function Documentation

friend class Gtid_set::Free_intervals_lock

friend

Used by unit tests that need to access private members.

Only Free_intervals_lock is allowed to access free_intervals_mutex.

Definition at line 1674 of file rpl_gtid.h.

Member Data Documentation

const Gtid_set::String_format Gtid_set::commented_string_format

static

Initial value:

{
  "# ", "", ":", "-", ":", ",\n# ", "# [empty]",
  2, 0, 1, 1, 1, 4, 9
}

String_format for printing the Gtid_set commented: the string is not quote-wrapped, and every SID is on a new line with a leading '# '.

Definition at line 1168 of file rpl_gtid.h.

const Gtid_set::String_format Gtid_set::default_string_format

static

Initial value:

{
  "", "", ":", "-", ":", ",\n", "",
  0, 0, 1, 1, 1, 2, 0
}

The default String_format: the format understood by add_gtid_text(const char *).

Definition at line 1158 of file rpl_gtid.h.

const Gtid_set::String_format Gtid_set::sql_string_format

static

Initial value:

{
  "'", "'", ":", "-", ":", "',\n'", "''",
  1, 1, 1, 1, 1, 4, 2
}

String_format useful to generate an SQL string: the string is wrapped in single quotes and there is a newline between SIDs.

Definition at line 1163 of file rpl_gtid.h.

The documentation for this class was generated from the following files:

sql/rpl_gtid.h
sql/rpl_gtid_set.cc

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
