EventLogger Class Reference

#include <EventLogger.hpp>

Inheritance diagram for EventLogger:

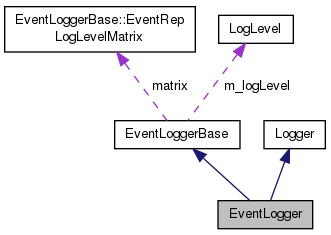

Collaboration diagram for EventLogger:

Public Member Functions
	EventLogger ()
virtual	~EventLogger ()
void	close ()
virtual void	log (int, const Uint32 *, Uint32 len, NodeId=0, const class LogLevel *=0)
Public Member Functions inherited from Logger
	Logger ()
virtual	~Logger ()
void	setCategory (const char *pCategory)
bool	createConsoleHandler (NdbOut &out=ndbout)
void	removeConsoleHandler ()
bool	createEventLogHandler (const char *source_name)
bool	createFileHandler (char *filename=0)
void	removeFileHandler ()
bool	createSyslogHandler ()
void	removeSyslogHandler ()
bool	addHandler (LogHandler *pHandler)
bool	addHandler (const BaseString &logstring, int *err, int len, char *errStr)
bool	removeHandler (LogHandler *pHandler)
void	removeAllHandlers ()
bool	isEnable (LoggerLevel logLevel) const
void	enable (LoggerLevel logLevel)
void	enable (LoggerLevel fromLogLevel, LoggerLevel toLogLevel)
void	disable (LoggerLevel logLevel)
virtual void	alert (const char *pMsg,...) const ATTRIBUTE_FORMAT(printf
virtual void virtual void	alert (BaseString &pMsg) const
virtual void	critical (const char *pMsg,...) const ATTRIBUTE_FORMAT(printf
virtual void virtual void	critical (BaseString &pMsg) const
virtual void	error (const char *pMsg,...) const ATTRIBUTE_FORMAT(printf
virtual void virtual void	error (BaseString &pMsg) const
virtual void	warning (const char *pMsg,...) const ATTRIBUTE_FORMAT(printf
virtual void virtual void	warning (BaseString &pMsg) const
virtual void	info (const char *pMsg,...) const ATTRIBUTE_FORMAT(printf
virtual void virtual void	info (BaseString &pMsg) const
virtual void	debug (const char *pMsg,...) const ATTRIBUTE_FORMAT(printf
virtual void virtual void	debug (BaseString &pMsg) const
virtual void	setRepeatFrequency (unsigned val)

Static Public Member Functions
static const char *	getText (char *dst, size_t dst_len, EventTextFunction textF, const Uint32 *theData, Uint32 len, NodeId nodeId=0)
Static Public Member Functions inherited from EventLoggerBase
static int	event_lookup (int eventType, LogLevel::EventCategory &cat, Uint32 &threshold, Logger::LoggerLevel &severity, EventTextFunction &textF)

Additional Inherited Members
Public Types inherited from EventLoggerBase
typedef void(*	EventTextFunction )(char *, size_t, const Uint32 *, Uint32 len)
Public Types inherited from Logger
enum	LoggerLevel {   LL_ON, LL_DEBUG, LL_INFO, LL_WARNING,   LL_ERROR, LL_CRITICAL, LL_ALERT, LL_ALL }
Public Attributes inherited from EventLoggerBase
LogLevel	m_logLevel
Static Public Attributes inherited from EventLoggerBase
static const EventRepLogLevelMatrix	matrix []
static const Uint32	matrixSize
Static Public Attributes inherited from Logger
static const char *	LoggerLevelNames []
Protected Member Functions inherited from Logger
void	log (LoggerLevel logLevel, const char *msg, va_list ap) const
Protected Attributes inherited from Logger
NdbMutex *	m_mutex

Detailed Description

The EventLogger is primarily used for logging NDB events in the Management Server. It inherits all logging functionality of Logger.

HOW TO USE

1) Create an EventLogger

EventLogger myEventLogger = new EventLogger();

2) Log NDB events and other log messages.

myEventLogger->info("Changing log levels.");

EventReport* report = (EventReport*)&theSignalData[0]; myEventLogger->log(eventReport->getEventType(), theSignalData, aNodeId);

The following NDB event categories and log levels are enabled as default:

EVENT-CATEGORY LOG-LEVEL

Startup 4 Shutdown 1 Statistic 2 Checkpoint 5 NodeRestart 8 Connection 2 Error 15 Info 10

See Also

Logger

Version

#@

Id:

EventLogger.hpp,v 1.3 2003/09/01 10:15:52 innpeno Exp

Definition at line 94 of file EventLogger.hpp.

Constructor & Destructor Documentation

EventLogger::EventLogger

(

)

Default constructor. Enables default log levels and sets the log category to 'EventLogger'.

Definition at line 1470 of file EventLogger.cpp.

Here is the call graph for this function:

EventLogger::~EventLogger ( )

virtual

Destructor.

Definition at line 1476 of file EventLogger.cpp.

Member Function Documentation

void EventLogger::close

(

void

)

Closes the eventlog.

Definition at line 1481 of file EventLogger.cpp.

Here is the call graph for this function:

const char * EventLogger::getText ( char *  dst, size_t  dst_len, EventTextFunction  textF, const Uint32 *  theData, Uint32  len, NodeId  nodeId = 0  )

static

Returns the event text for the specified event report type.

Parameters

textF	print function for the event
theData	the event data.
nodeId	a node id.

Returns

the event report text.

Definition at line 1519 of file EventLogger.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void EventLogger::log ( int  , const Uint32 *  , Uint32  len, NodeId  = 0, const class LogLevel *  = 0  )

virtual

Logs the NDB event.

Parameters

eventType	the type of event.
theData	the event data.
nodeId	the node id of event origin.

Definition at line 1535 of file EventLogger.cpp.

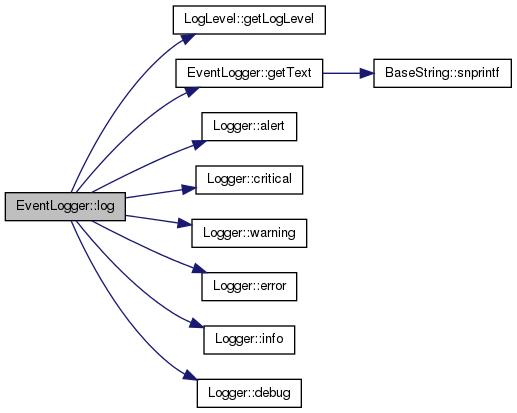

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• storage/ndb/include/debugger/EventLogger.hpp
• storage/ndb/src/common/debugger/EventLogger.cpp
