ConfigInfo Class Reference

Metainformation about ALL cluster configuration parameters. More...

#include <ConfigInfo.hpp>

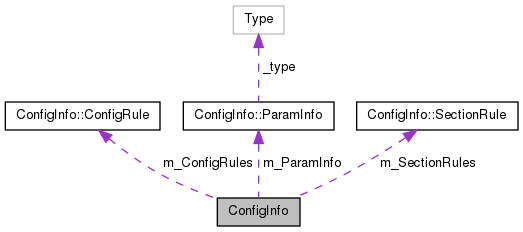

Collaboration diagram for ConfigInfo:

Classes
struct	AliasPair
struct	ConfigRule
struct	ConfigRuleSection
struct	ParamInfo
class	ParamInfoIter
struct	SectionRule
struct	Typelib

Public Types
enum	Type {   CI_BOOL, CI_INT, CI_INT64, CI_STRING,   CI_ENUM, CI_BITMASK, CI_SECTION }
enum	Status {   CI_USED, CI_EXPERIMENTAL, CI_DEPRECATED, CI_NOTIMPLEMENTED,   CI_INTERNAL }
enum	Flags { CI_ONLINE_UPDATEABLE = 1, CI_CHECK_WRITABLE = 2, CI_RESTART_SYSTEM = 4, CI_RESTART_INITIAL = 8 }

Public Member Functions
bool	verify (const Properties *secti, const char *fname, Uint64 value) const
bool	verify_enum (const Properties *section, const char *fname, const char *value, Uint32 &value_int) const
void	get_enum_values (const Properties *section, const char *fname, BaseString &err) const
bool	isSection (const char *) const
const char *	getDescription (const Properties *sec, const char *fname) const
Type	getType (const Properties *section, const char *fname) const
Status	getStatus (const Properties *section, const char *fname) const
Uint64	getMin (const Properties *section, const char *fname) const
Uint64	getMax (const Properties *section, const char *fname) const
Uint64	getDefault (const Properties *section, const char *fname) const
Uint32	getFlags (const Properties *section, const char *fname) const
const char *	getDefaultString (const Properties *section, const char *fname) const
bool	getMandatory (const Properties *section, const char *fname) const
bool	hasDefault (const Properties *section, const char *fname) const
const Properties *	getInfo (const char *section) const
const Properties *	getDefaults (const char *section) const
const char *	sectionName (Uint32 section_type, Uint32 type) const
void	print (const char *section=NULL) const
void	print_xml (const char *section=NULL) const

Static Public Member Functions
static Uint32	getSectionType (const ParamInfo &p)
static const Typelib *	getTypelibPtr (const ParamInfo &p)
static const char *	nameToAlias (const char *)
static const char *	getAlias (const char *)

Static Public Attributes
static const ParamInfo	m_ParamInfo []
static const int	m_NoOfParams = sizeof(m_ParamInfo) / sizeof(ParamInfo)
static const SectionRule	m_SectionRules []
static const ConfigRule	m_ConfigRules []
static const int	m_NoOfRules = sizeof(m_SectionRules)/sizeof(SectionRule)

Detailed Description

Metainformation about ALL cluster configuration parameters.

Use the getters to find out metainformation about parameters.

Definition at line 38 of file ConfigInfo.hpp.

Member Enumeration Documentation

enum ConfigInfo::Status

Enumerator:

CI_USED	Active.
CI_EXPERIMENTAL	Active but experimental.
CI_DEPRECATED	Can be used, but shouldn't.
CI_NOTIMPLEMENTED	Is ignored.
CI_INTERNAL	Not configurable by the user.

Definition at line 48 of file ConfigInfo.hpp.

Member Function Documentation

static Uint32 ConfigInfo::getSectionType ( const ParamInfo &  p )

inlinestatic

section type is stored in _default

Definition at line 129 of file ConfigInfo.hpp.

static const Typelib* ConfigInfo::getTypelibPtr ( const ParamInfo &  p )

inlinestatic

typelib ptr is stored in _min

Definition at line 137 of file ConfigInfo.hpp.

bool ConfigInfo::verify	(	const Properties *	secti,
		const char *	fname,
		Uint64	value
	)		const

Checks if the suggested value is valid for the suggested parameter (i.e. if it is >= than min and <= than max).

Parameters

section	Init Config file section name
fname	Name of parameter
value	Value to check

Returns

true if parameter value is valid.

Note

Result is not defined if section/name are wrong!

Definition at line 3662 of file ConfigInfo.cpp.

Member Data Documentation

const ConfigInfo::ConfigRule ConfigInfo::m_ConfigRules

static

Initial value:

 {
  { add_system_section, 0 },
  { sanity_checks, 0 },
  { add_node_connections, 0 },
  { set_connection_priorities, 0 },
  { check_node_vs_replicas, 0 },
  { check_mutually_exclusive, 0 },
  { saveSectionsInConfigValues, "SYSTEM,Node,Connection" },
  { 0, 0 }
}

Definition at line 245 of file ConfigInfo.hpp.

const ConfigInfo::ParamInfo ConfigInfo::m_ParamInfo

static

The default constructors create objects with suitable values for the configuration parameters.

Some are however given the value MANDATORY which means that the value must be specified in the configuration file.

Min and max values are also given for some parameters.

• Attr1: Name in file (initial config file)
• Attr2: Name in prop (properties object)
• Attr3: Name of Section (in init config file)
• Attr4: Updateable
• Attr5: Type of parameter (INT or BOOL)
• Attr6: Default Value (number only)
• Attr7: Min value
• Attr8: Max value

Parameter constraints are coded in file Config.cpp.

---

Parameters used under development should be marked "NOTIMPLEMENTED"

---

Definition at line 240 of file ConfigInfo.hpp.

---

The documentation for this class was generated from the following files:

• storage/ndb/src/mgmsrv/ConfigInfo.hpp
• storage/ndb/src/mgmsrv/ConfigInfo.cpp
