buf0flu.h File Reference

#include "univ.i"
#include "ut0byte.h"
#include "log0log.h"
#include "mtr0types.h"
#include "buf0types.h"
#include "buf0flu.ic"

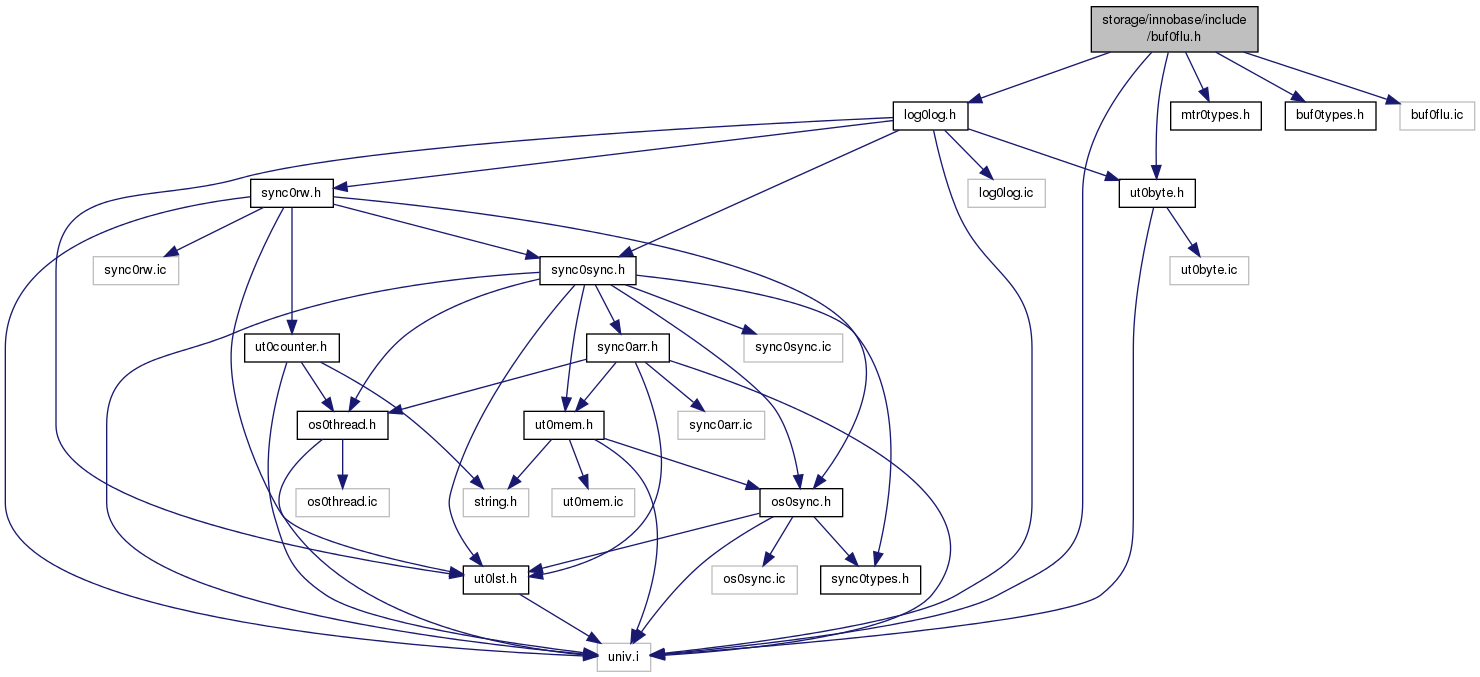

Include dependency graph for buf0flu.h:

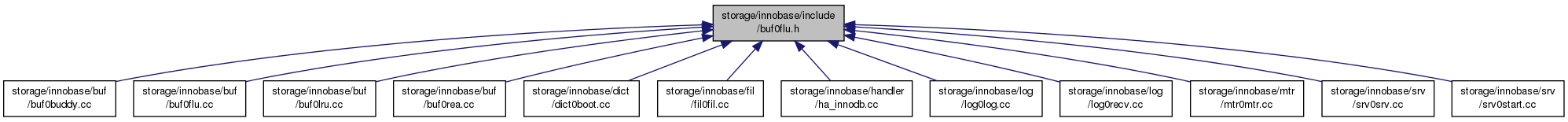

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
UNIV_INTERN void	buf_flush_remove (buf_page_t *bpage)
UNIV_INTERN void	buf_flush_relocate_on_flush_list (buf_page_t *bpage, buf_page_t *dpage)
UNIV_INTERN void	buf_flush_write_complete (buf_page_t *bpage)
UNIV_INTERN void	buf_flush_init_for_writing (byte *page, void *page_zip_, lsn_t newest_lsn)
UNIV_INTERN bool	buf_flush_list (ulint min_n, lsn_t lsn_limit, ulint *n_processed)
UNIV_INTERN ibool	buf_flush_single_page_from_LRU (buf_pool_t *buf_pool)
UNIV_INTERN void	buf_flush_wait_batch_end (buf_pool_t *buf_pool, buf_flush_t type)
UNIV_INTERN void	buf_flush_wait_batch_end_wait_only (buf_pool_t *buf_pool, buf_flush_t type)
UNIV_INLINE void	buf_flush_note_modification (buf_block_t *block, mtr_t *mtr)
UNIV_INLINE void	buf_flush_recv_note_modification (buf_block_t *block, lsn_t start_lsn, lsn_t end_lsn)
UNIV_INTERN ibool	buf_flush_ready_for_replace (buf_page_t *bpage)
UNIV_INTERN os_thread_ret_t DECLARE_THREAD()	buf_flush_page_cleaner_thread (void *arg)
UNIV_INTERN ulint	buf_flush_LRU_tail (void)
UNIV_INTERN void	buf_flush_wait_LRU_batch_end (void)
UNIV_INTERN void	buf_flush_init_flush_rbt (void)
UNIV_INTERN void	buf_flush_free_flush_rbt (void)
UNIV_INTERN void	buf_flush_page (buf_pool_t *buf_pool, buf_page_t *bpage, buf_flush_t flush_type, bool sync) __attribute__((nonnull))
UNIV_INTERN bool	buf_flush_ready_for_flush (buf_page_t *bpage, buf_flush_t flush_type) __attribute__((warn_unused_result))

Variables
ibool	buf_page_cleaner_is_active

Detailed Description

The database buffer pool flush algorithm

Created 11/5/1995 Heikki Tuuri

Definition in file buf0flu.h.

Function Documentation

UNIV_INTERN void buf_flush_free_flush_rbt

(

void

)

Frees up the red-black tree.

Definition at line 320 of file buf0flu.cc.

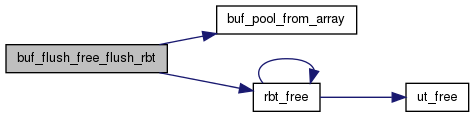

Here is the call graph for this function:

UNIV_INTERN void buf_flush_init_flush_rbt

(

void

)

Initialize the red-black tree to speed up insertions into the flush_list during recovery process. Should be called at the start of recovery process before any page has been read/written.

Definition at line 296 of file buf0flu.cc.

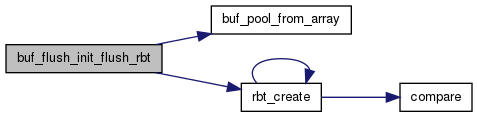

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN void buf_flush_init_for_writing	(	byte *	page,
		void *	page_zip_,
		lsn_t	newest_lsn
	)

Initializes a page for writing to the tablespace. in: newest modification lsn to the page

Initializes a page for writing to the tablespace.

Parameters

page	in/out: page
page_zip_	in/out: compressed page, or NULL
newest_lsn	in: newest modification lsn to the page

Definition at line 773 of file buf0flu.cc.

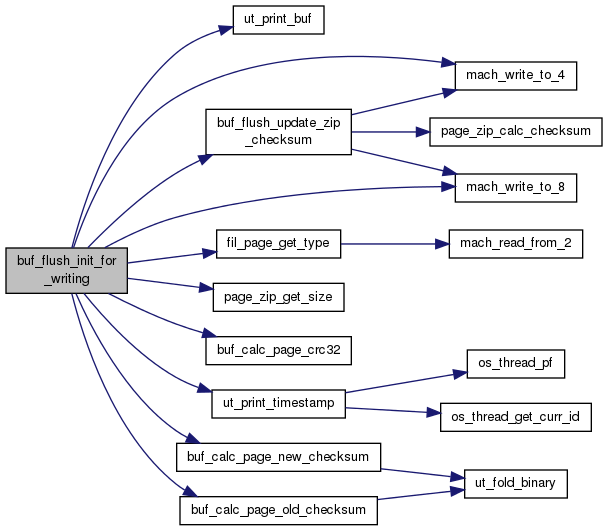

Here is the call graph for this function:

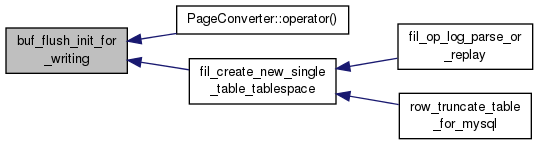

Here is the caller graph for this function:

UNIV_INTERN bool buf_flush_list	(	ulint	min_n,
		lsn_t	lsn_limit,
		ulint *	n_processed
	)

This utility flushes dirty blocks from the end of the flush list of all buffer pool instances. NOTE: The calling thread is not allowed to own any latches on pages!

Returns

true if a batch was queued successfully for each buffer pool instance. false if another batch of same type was already running in at least one of the buffer pool instance out: the number of pages which were processed is passed back to caller. Ignored if NULL

This utility flushes dirty blocks from the end of the flush list of all buffer pool instances. NOTE: The calling thread is not allowed to own any latches on pages!

Returns

true if a batch was queued successfully for each buffer pool instance. false if another batch of same type was already running in at least one of the buffer pool instance

Parameters

min_n	in: wished minimum mumber of blocks flushed (it is not guaranteed that the actual number is that big, though)
lsn_limit	in the case BUF_FLUSH_LIST all blocks whose oldest_modification is smaller than this should be flushed (if their number does not exceed min_n), otherwise ignored
n_processed	out: the number of pages which were processed is passed back to caller. Ignored if NULL

Definition at line 1895 of file buf0flu.cc.

Here is the call graph for this function:

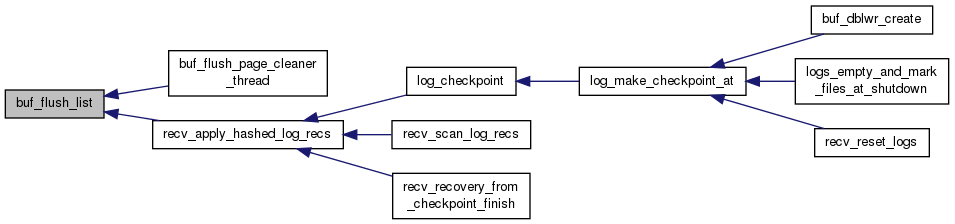

Here is the caller graph for this function:

UNIV_INTERN ulint buf_flush_LRU_tail

(

void

)

Clears up tail of the LRU lists: Put replaceable pages at the tail of LRU to the free list Flush dirty pages at the tail of LRU to the disk The depth to which we scan each buffer pool is controlled by dynamic config parameter innodb_LRU_scan_depth.

Returns

total pages flushed

Definition at line 2073 of file buf0flu.cc.

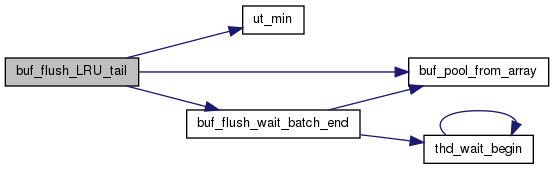

Here is the call graph for this function:

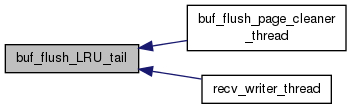

Here is the caller graph for this function:

UNIV_INLINE void buf_flush_note_modification	(	buf_block_t *	block,
		mtr_t *	mtr
	)

This function should be called at a mini-transaction commit, if a page was modified in it. Puts the block to the list of modified blocks, if it not already in it. in: mtr

Parameters

block

in: block which is modified

UNIV_INTERN void buf_flush_page	(	buf_pool_t *	buf_pool,
		buf_page_t *	bpage,
		buf_flush_t	flush_type,
		bool	sync
	)

Writes a flushable page asynchronously from the buffer pool to a file. NOTE: in simulated aio we must call os_aio_simulated_wake_handler_threads after we have posted a batch of writes! NOTE: buf_pool->mutex and buf_page_get_mutex(bpage) must be held upon entering this function, and they will be released by this function.

Parameters

buf_pool	in: buffer pool instance
bpage	in: buffer control block
flush_type	in: type of flush
sync	in: true if sync IO request

Definition at line 997 of file buf0flu.cc.

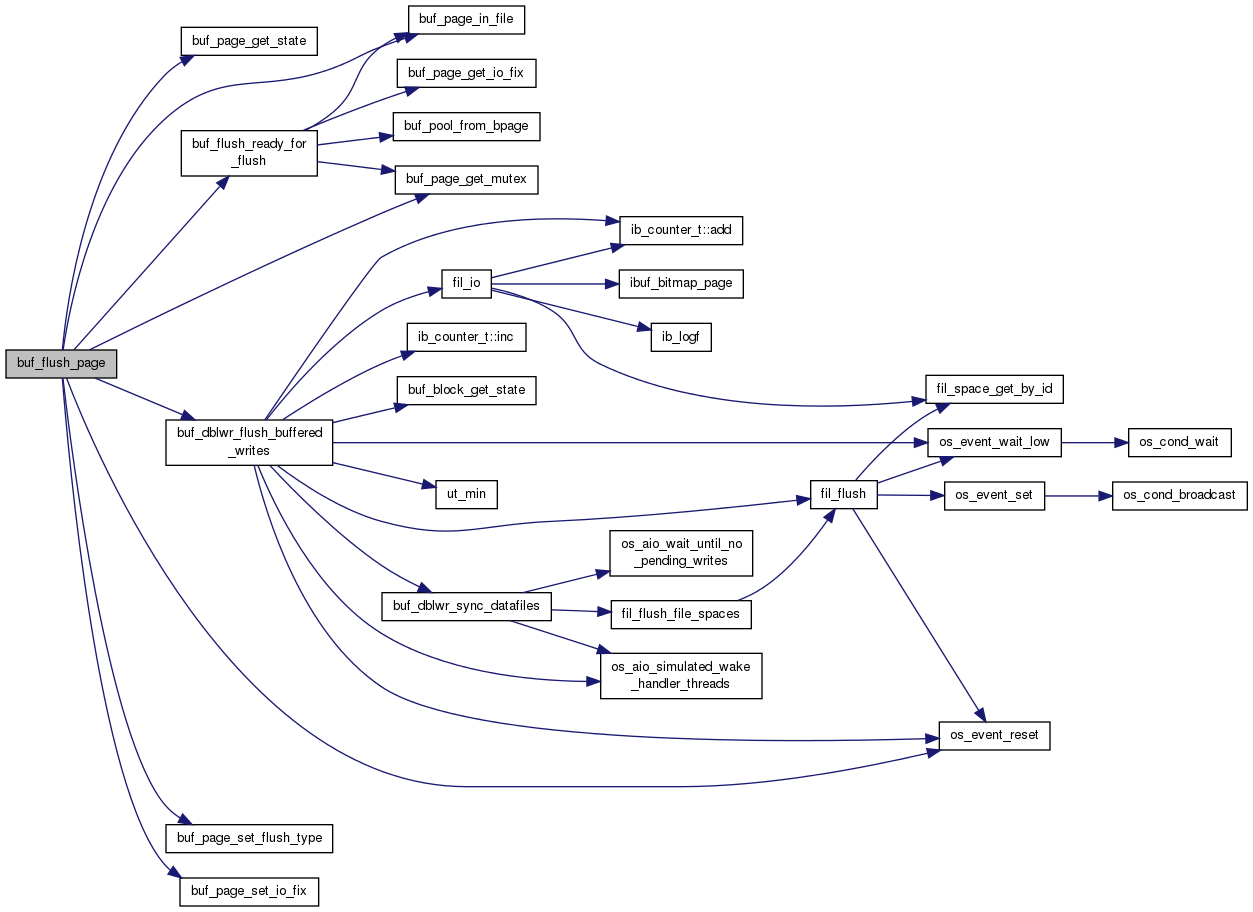

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN os_thread_ret_t DECLARE_THREAD() buf_flush_page_cleaner_thread

(

void *

arg

)

page_cleaner thread tasked with flushing dirty pages from the buffer pools. As of now we'll have only one instance of this thread.

Returns

a dummy parameter in: a dummy parameter required by os_thread_create

UNIV_INTERN bool buf_flush_ready_for_flush	(	buf_page_t *	bpage,
		buf_flush_t	flush_type
	)

Returns true if the block is modified and ready for flushing.

Returns

true if can flush immediately

Parameters

bpage	in: buffer control block, must be buf_page_in_file(bpage)
flush_type	in: type of flush

Definition at line 532 of file buf0flu.cc.

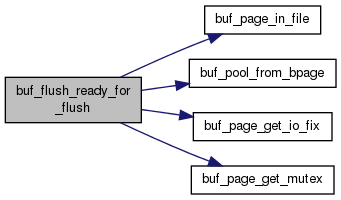

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool buf_flush_ready_for_replace

(

buf_page_t *

bpage

)

Returns TRUE if the file page block is immediately suitable for replacement, i.e., transition FILE_PAGE => NOT_USED allowed.

Returns

TRUE if can replace immediately in: buffer control block, must be buf_page_in_file(bpage) and in the LRU list

Returns TRUE if the file page block is immediately suitable for replacement, i.e., the transition FILE_PAGE => NOT_USED allowed.

Returns

TRUE if can replace immediately

Parameters

bpage

in: buffer control block, must be buf_page_in_file(bpage) and in the LRU list

Definition at line 497 of file buf0flu.cc.

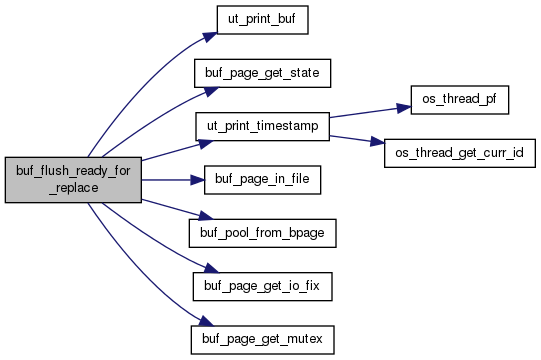

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INLINE void buf_flush_recv_note_modification	(	buf_block_t *	block,
		lsn_t	start_lsn,
		lsn_t	end_lsn
	)

This function should be called when recovery has modified a buffer page. in: end lsn of the last mtr in the set of mtr's

Parameters

block	in: block which is modified
start_lsn	in: start lsn of the first mtr in a set of mtr's

Here is the caller graph for this function:

UNIV_INTERN void buf_flush_relocate_on_flush_list	(	buf_page_t *	bpage,
		buf_page_t *	dpage
	)

Relocates a buffer control block on the flush_list. Note that it is assumed that the contents of bpage has already been copied to dpage. in/out: destination block

Relocates a buffer control block on the flush_list. Note that it is assumed that the contents of bpage have already been copied to dpage. IMPORTANT: When this function is called bpage and dpage are not exact copies of each other. For example, they both will have different ::state. Also the ::list pointers in dpage may be stale. We need to use the current list node (bpage) to do the list manipulation because the list pointers could have changed between the time that we copied the contents of bpage to the dpage and the flush list manipulation below.

Parameters

bpage	in/out: control block being moved
dpage	in/out: destination block

Definition at line 649 of file buf0flu.cc.

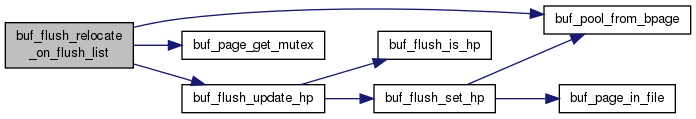

Here is the call graph for this function:

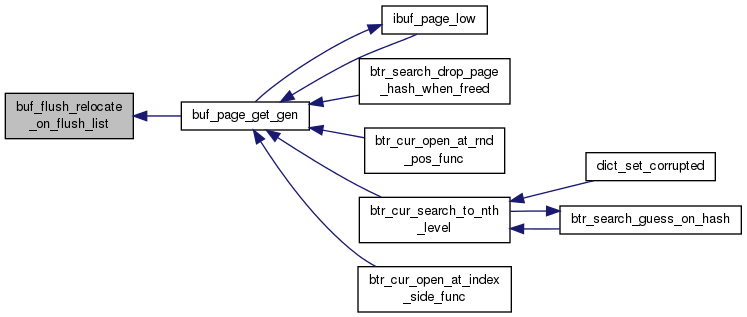

Here is the caller graph for this function:

UNIV_INTERN void buf_flush_remove

(

buf_page_t *

bpage

)

Remove a block from the flush list of modified blocks. in: pointer to the block in question

Remove a block from the flush list of modified blocks.

Parameters

bpage

in: pointer to the block in question

Definition at line 579 of file buf0flu.cc.

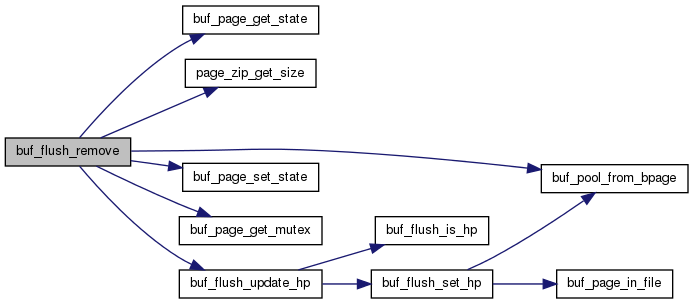

Here is the call graph for this function:

Here is the caller graph for this function:

UNIV_INTERN ibool buf_flush_single_page_from_LRU

(

buf_pool_t *

buf_pool

)

This function picks up a single dirty page from the tail of the LRU list, flushes it, removes it from page_hash and LRU list and puts it on the free list. It is called from user threads when they are unable to find a replacable page at the tail of the LRU list i.e.: when the background LRU flushing in the page_cleaner thread is not fast enough to keep pace with the workload.

Returns

TRUE if success. in/out: buffer pool instance

This function picks up a single dirty page from the tail of the LRU list, flushes it, removes it from page_hash and LRU list and puts it on the free list. It is called from user threads when they are unable to find a replaceable page at the tail of the LRU list i.e.: when the background LRU flushing in the page_cleaner thread is not fast enough to keep pace with the workload.

Returns

TRUE if success.

Parameters

buf_pool

in/out: buffer pool instance

Definition at line 1982 of file buf0flu.cc.

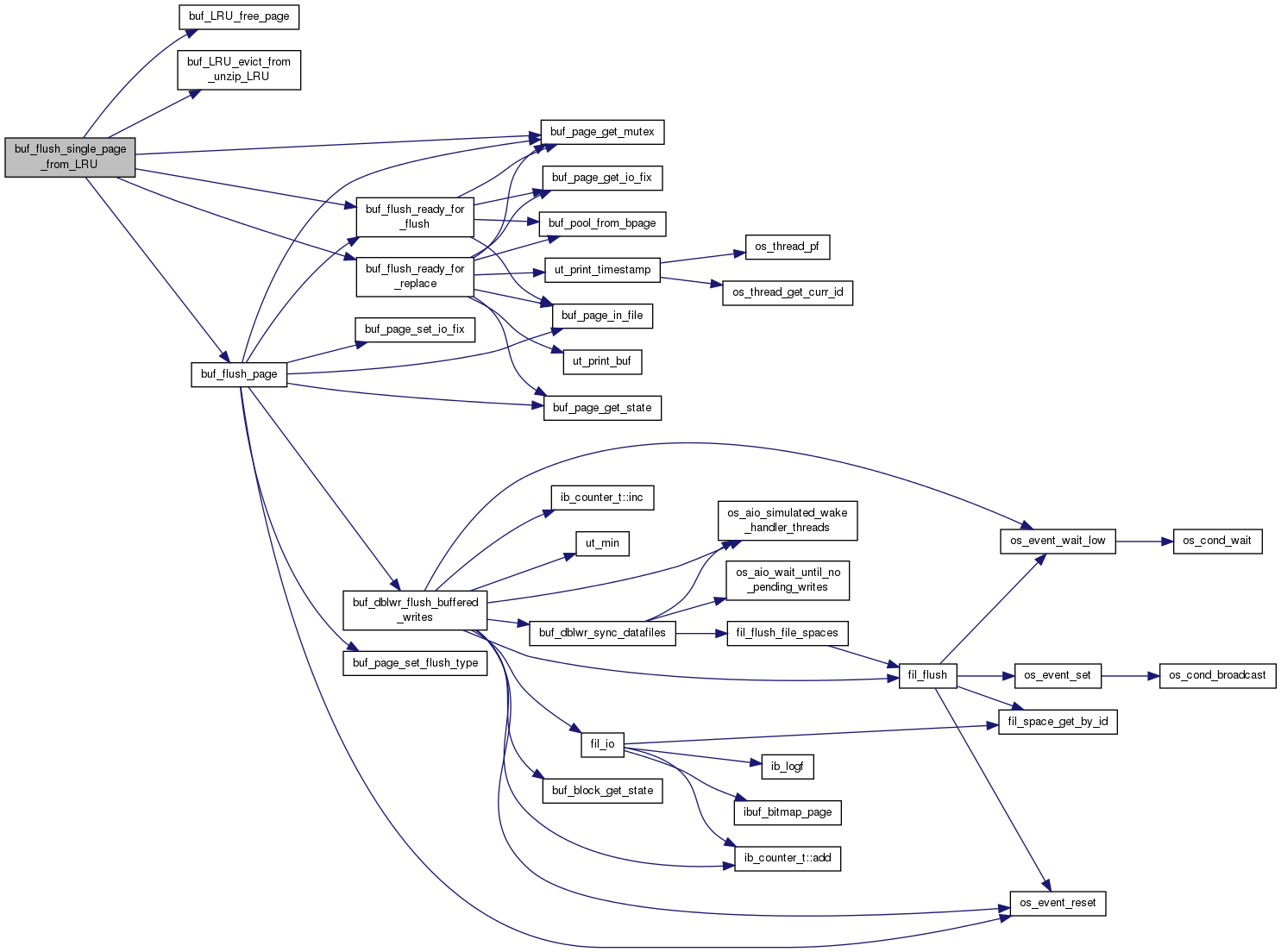

Here is the call graph for this function:

UNIV_INTERN void buf_flush_wait_batch_end	(	buf_pool_t *	buf_pool,
		buf_flush_t	type
	)

Waits until a flush batch of the given type ends in: BUF_FLUSH_LRU or BUF_FLUSH_LIST

Waits until a flush batch of the given type ends

Parameters

buf_pool	buffer pool instance
type	in: BUF_FLUSH_LRU or BUF_FLUSH_LIST

Definition at line 1817 of file buf0flu.cc.

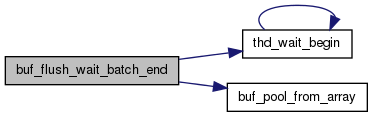

Here is the call graph for this function:

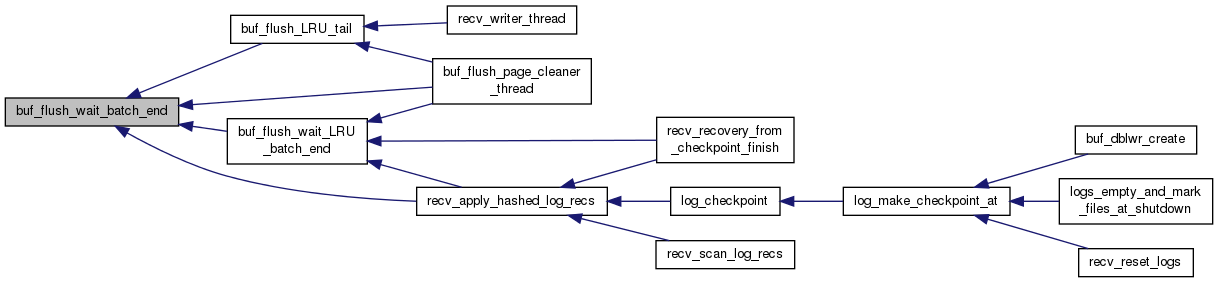

Here is the caller graph for this function:

UNIV_INTERN void buf_flush_wait_batch_end_wait_only	(	buf_pool_t *	buf_pool,
		buf_flush_t	type
	)

Waits until a flush batch of the given type ends. This is called by a thread that only wants to wait for a flush to end but doesn't do any flushing itself. in: BUF_FLUSH_LRU or BUF_FLUSH_LIST

Parameters

buf_pool

in: buffer pool instance

UNIV_INTERN void buf_flush_wait_LRU_batch_end

(

void

)

Wait for any possible LRU flushes that are in progress to end.

Definition at line 2138 of file buf0flu.cc.

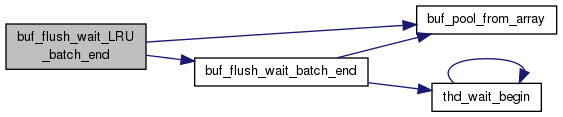

Here is the call graph for this function:

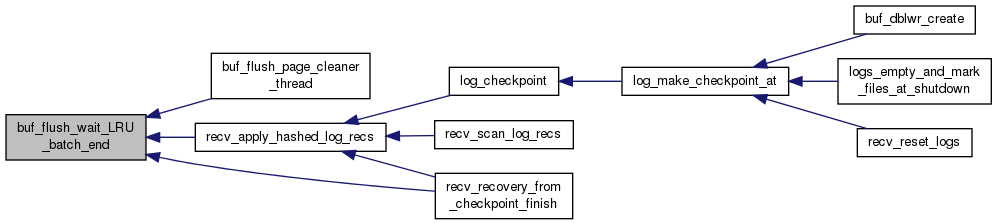

Here is the caller graph for this function:

UNIV_INTERN void buf_flush_write_complete

(

buf_page_t *

bpage

)

Updates the flush system data structures when a write is completed. in: pointer to the block in question

Updates the flush system data structures when a write is completed.

Parameters

bpage

in: pointer to the block in question

Definition at line 719 of file buf0flu.cc.

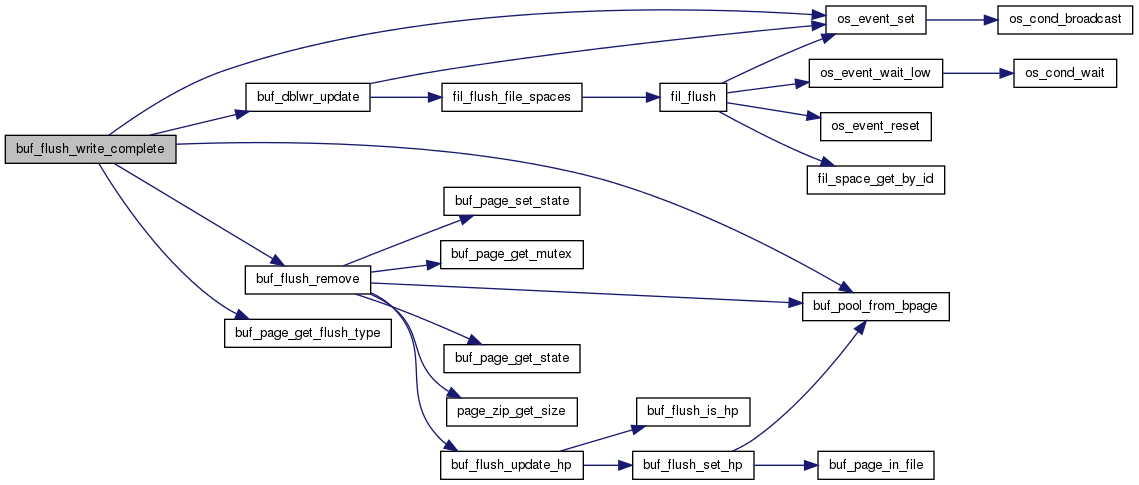

Here is the call graph for this function:

Variable Documentation

ibool buf_page_cleaner_is_active

Flag indicating if the page_cleaner is in active state.

Flag indicating if the page_cleaner is in active state. This flag

is set to TRUE by the page_cleaner thread when it is spawned and is set back to FALSE at shutdown by the page_cleaner as well. Therefore no need to protect it by a mutex. It is only ever read by the thread doing the shutdown

Definition at line 60 of file buf0flu.cc.
